Gigabyte’s X870 Aorus Stealth, as its name implies, features only the required connectivity on the front (think PCIe, RAM, and storage), while the rest of the connections, like ATX and EPS power, fan, RGB, and other expansion headers, have all moved to the back of the board, yielding a clean, wire-free aesthetic on the front side, moving all the unsightly cables to the rear where they can are easily hidden. On top of that, the new board sports an all-black design, support for the latest AMD processors, a 64MB BIOS (Wi-Fi driver included), ample connectivity, robust power delivery, and more, all for a reasonable MSRP of $299.99.
The decidedly mid-range motherboard comes with four M.2 sockets (two PCIe 5.0 x4) and two SATA connectors for storage, fast networking with 5 GbE and Wi-Fi 7, a last-generation flagship audio codec, 13 total USB ports on the rear IO (10 Type-A, three Type-C, and two USB4 40 Gbps ports), and more. The board also uses its X3D turbo mode to get the most out of your X3D chip, along with several DIY-friendly features, like the EZ-Latch Plus/Click for the M.2 socket and the primary PCIe slot, the Wi-Fi EZ-Plug, and the EZ-Debug zone. Not too shabby for a $300 board.
Performance with the latest BIOS (F5) was fine on the Aorus Stealth, even though the AGESA is one version older (1.2.8.0 vs 1.3.0.0). We generally saw above-average to average results across a wide variety of tests. The board proved not only to be competent in productivity and creative activities, but also solid in gaming. In short, it’s a well-rounded motherboard with a variety of features and connectivity, and oh yeah, you get the clean look of a rear-connect motherboard that isn’t too cheap or too expensive.
Below, we’ll examine the board’s performance and other features to determine whether it deserves a spot on our list of the best motherboards (it’s one of the best rear-connect out there…). But before we share test results and discuss details, here are the specifications from Gigabyte’s website.
Specifications of the X870 Aorus Stealth
|
Socket |
AM5 (LGA 1718) |
|
Chipset |
X870 |
|
Form Factor |
ATX |
|
Voltage Regulator |
20 Phase (16x 80A SPS MOSFETs for Vcore) |
|
Video Ports |
(1) HDMI (v2.1) |
|
USB Ports |
(2) USB 4 (40 Gbps) Type-C |
|
Network Jacks |
(1) 5 GbE |
|
Audio Jacks |
(2) Analog + SPDIF |
|
Legacy Ports/Jacks |
✗ |
|
Other Ports/Jack |
✗ |
|
PCIe x16 |
(1) v5.0 (x16/x8) |
|
PCIe x8 |
✗ |
|
PCIe x4 |
✗ |
|
PCIe x1 |
✗ |
|
CrossFire/SLI |
✗ |
|
DIMM Slots |
(4) DDR5-8200(OC), 256GB Capacity |
|
M.2 Sockets |
(2) PCIe 5.0 x4 (128 Gbps) / PCIe (up to 110mm) |
|
SATA Ports |
(2) SATA3 6 Gbps |
|
USB Headers |
(1) USB v3.2 Gen 2×2 (20 Gbps) Type-C |
|
Fan/Pump Headers |
(8) 4-Pin (Accepts PWM and DC) |
|
RGB Headers |
(8) 3-pin ARGB headers |
|
Diagnostics Panel |
(1) EZ Debug LED |
|
Internal Button/Switch |
Power/Reset/QF_Plus buttons |
|
SATA Controllers |
✗ |
|
Ethernet Controller(s) |
(1) Realtek 8126 (5 GbE) |
|
Wi-Fi / Bluetooth |
Qualcomm QCNCM865 Wi-Fi 7 – 320 MHz, 6 GHz, 5.8 GHz, BT 5.4 |
|
USB Controllers |
Realtek RTS5411S, ASMedia ASM4242 |
|
HD Audio Codec |
Realtek ALC1220 |
|
DDL/DTS |
✗ / ✗ |
|
Warranty |
3 Years |
Gigabyte’s Project Stealth
Like most other major brands, Gigabyte has also jumped on the rear-connect/BTF bandwagon, offering an ecosystem that supports back-connect devices. This includes motherboards, video cards, and chassis. If you haven’t heard of BTF/rear-connect, it’s just as described: All the connections for power, fans, RGBs, and other connectivity (USB, SATA, audio, front panel, etc.) are on the back, which makes for a much cleaner look than with the wires coming out of their normal locations on the front of the board.
Gigabyte offers a couple of different Stealth models, including the X870 Aorus Stealth (and Stealth Ice – in white) we’re covering here, and even a B850 Aorus Stealth. A quick search at their website didn’t turn up anything for the latest Intel chipset (though they did have some in the previous generation), so you do have options.
Gigabyte also made a video card, the Aorus RTX 5090 Stealth Ice 32G, where instead of the 16-pin connector mounted at the top of the card, which sticks out like a sore thumb, it’s mounted at the end of the PCB, hidden much better. The ‘stealthy’ mounting location works with a normal or vertical orientation. I’d like to see something further down the product stack (and cheaper) with this feature.
Image 1 of 6

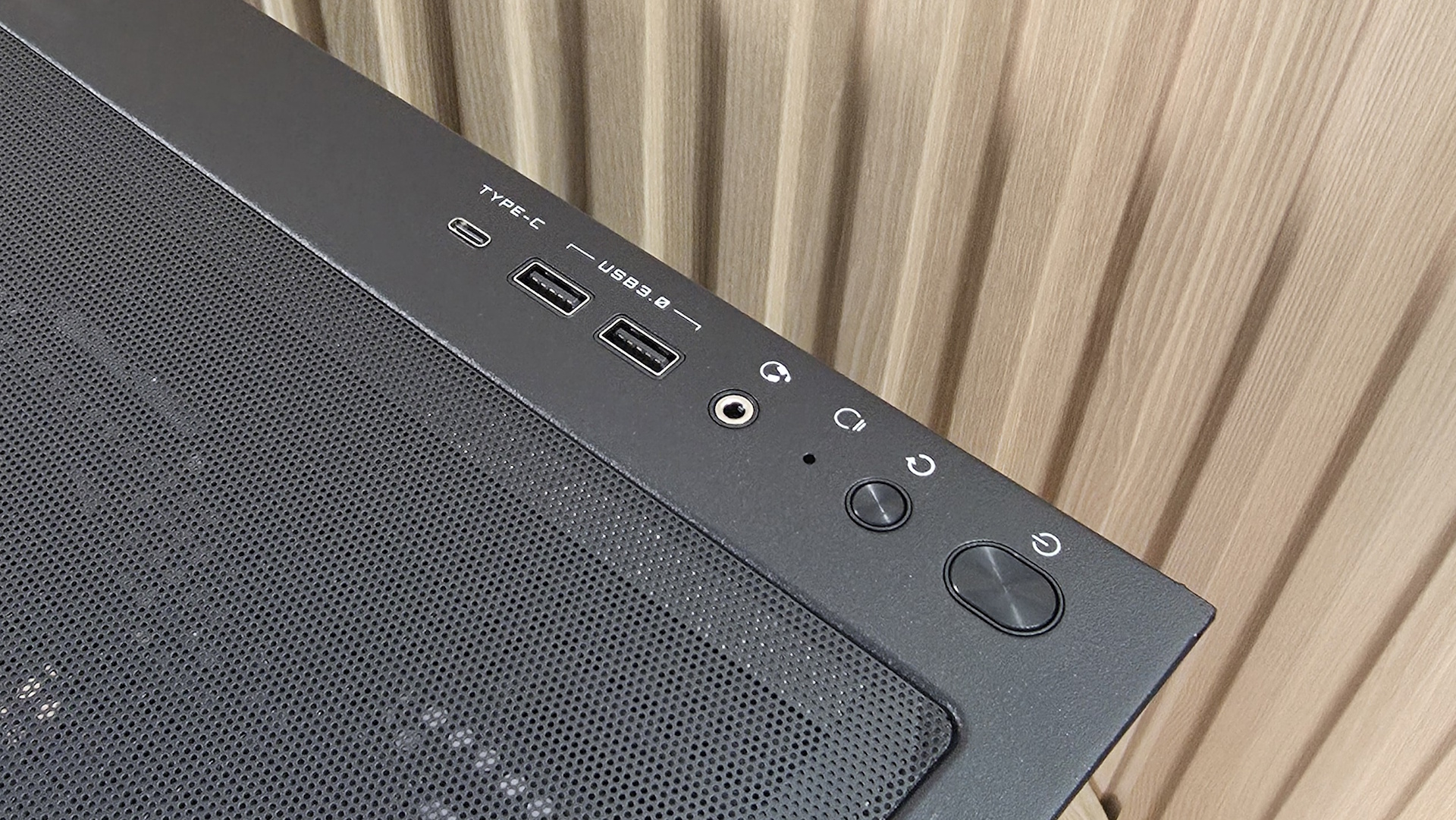

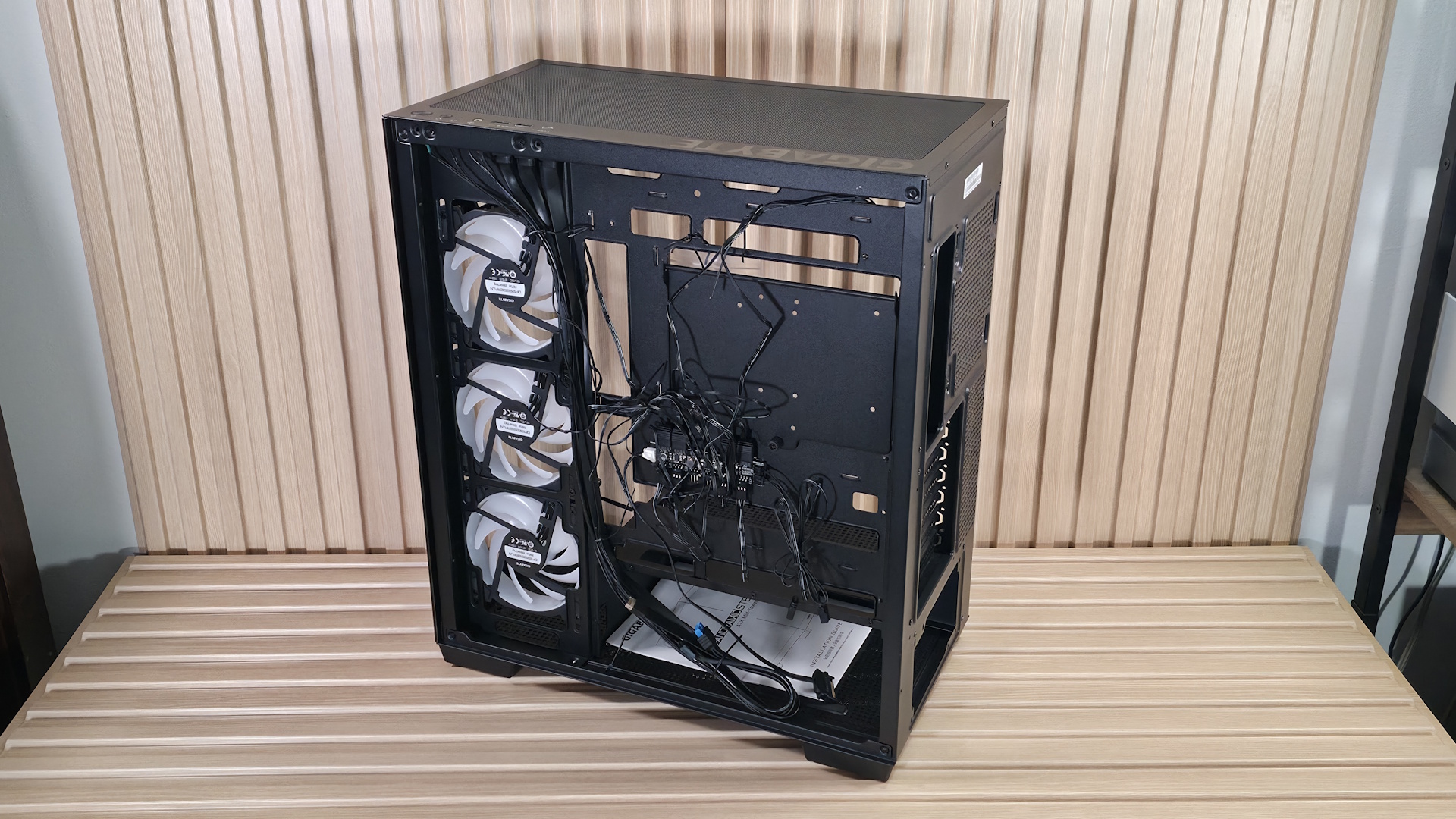

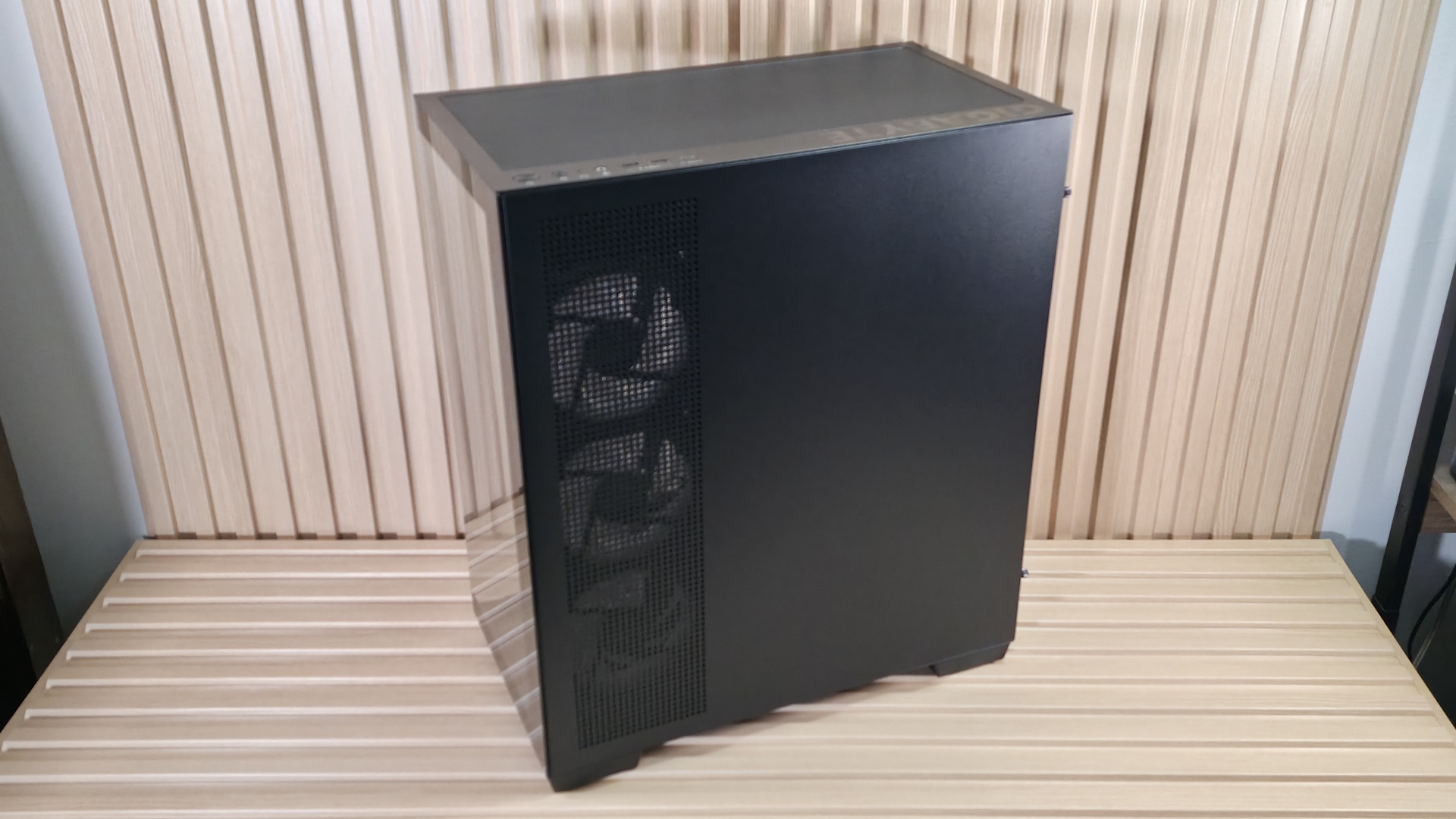

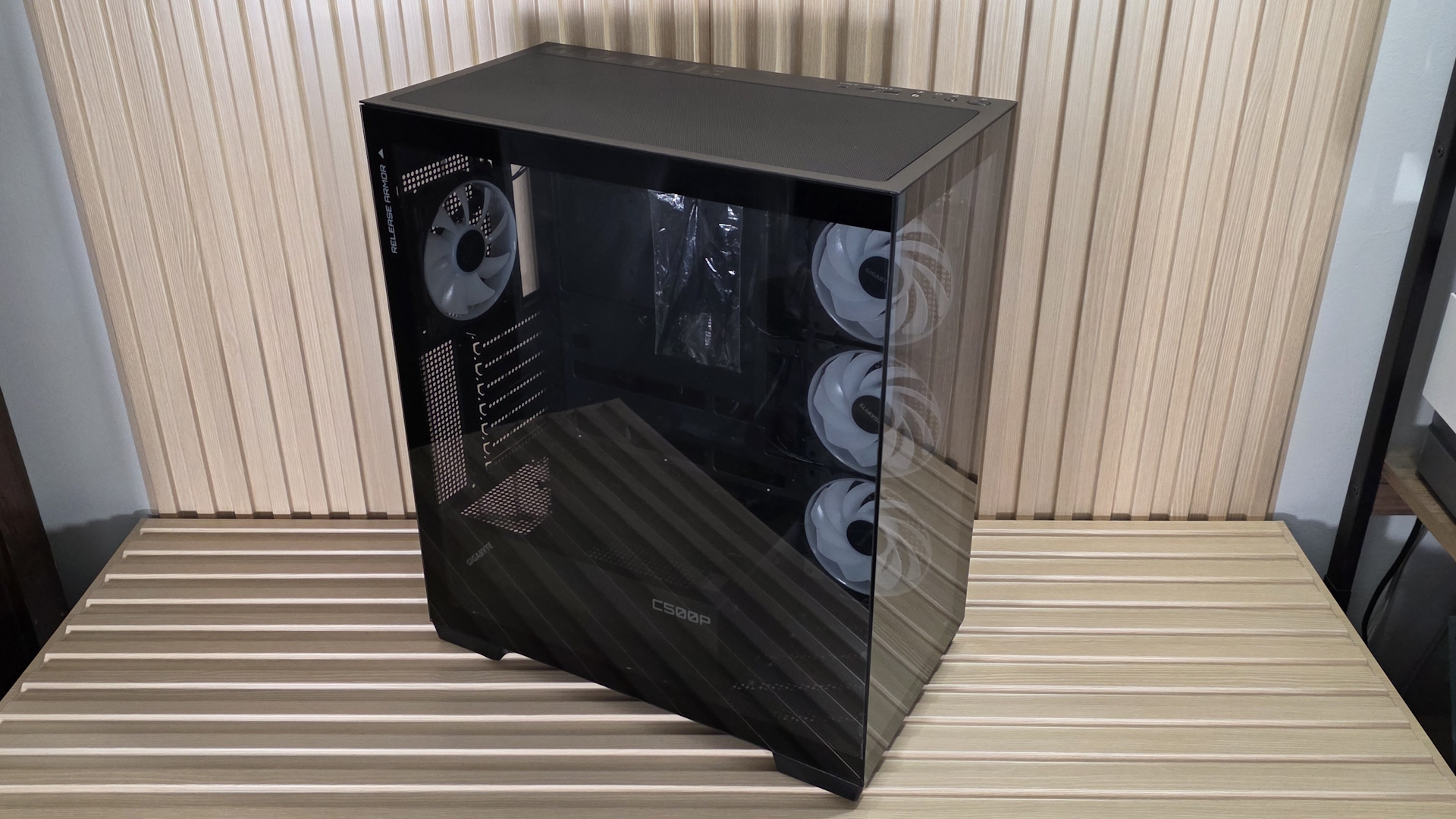

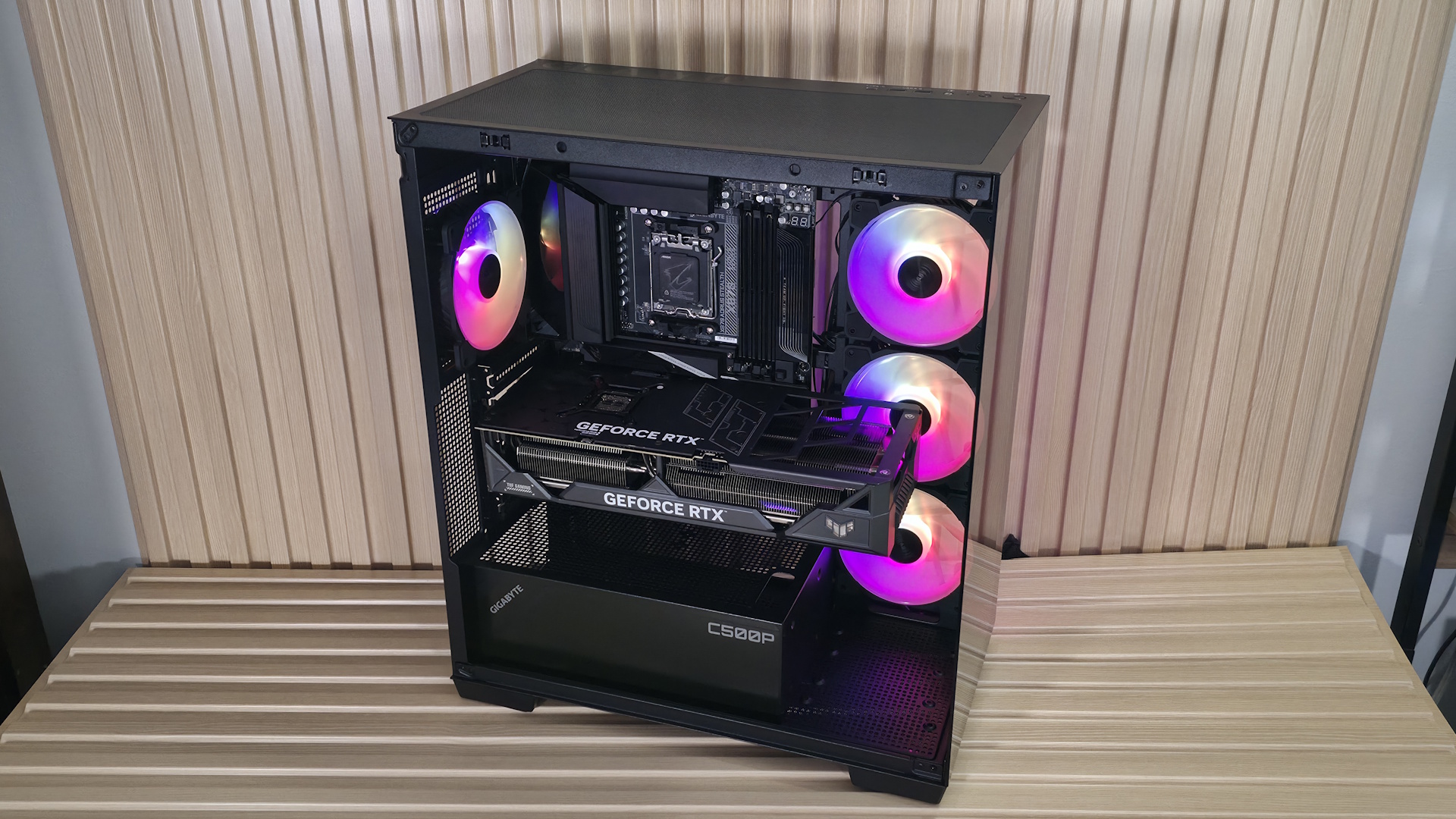

As far as cases go, Gigabyte’s mid-tower C500 Panoramic Stealth (and Stealth Ice – ~$183) rounds out its current list of rear-connect/BTF compatibility. The mid-tower chassis features cutouts on the motherboard panel to support not only their rear-connect offerings but also those of their competitors, fitting Mini-ITX through ATX boards. The case itself is beautiful, sporting a 270-degree panoramic view of the inside via two glass panels (front and side). It includes three 120mm RGB fans (3x reverse – front, 1x normal – rear), a fan/RGB hub, and enough room for two 360mm radiators (top/side). There’s plenty of airflow. If you air cool, the maximum height is 176mm, while the largest GPU you can fit is 410mm (vertical mounting is also supported, with a kit sold separately). The IO panel offers typical modern connectivity, with two USB 3.2 Gen 1 (5 Gbps) ports, a 10 Gbps USB-C port, a reset button, and audio in/out.
Inside the Box
To put it succinctly, the Stealth doesn’t come with a lot of extras, but it does offer what you need to get started. Gigabyte includes the typical guides and stickers, some pads for the M.2 sockets, a quick-connect for the front-panel header, two SATA cables, and a quick-connect Wi-Fi antenna. Nothing extraordinary here.
Design of the Aorus Stealth
Image 1 of 6

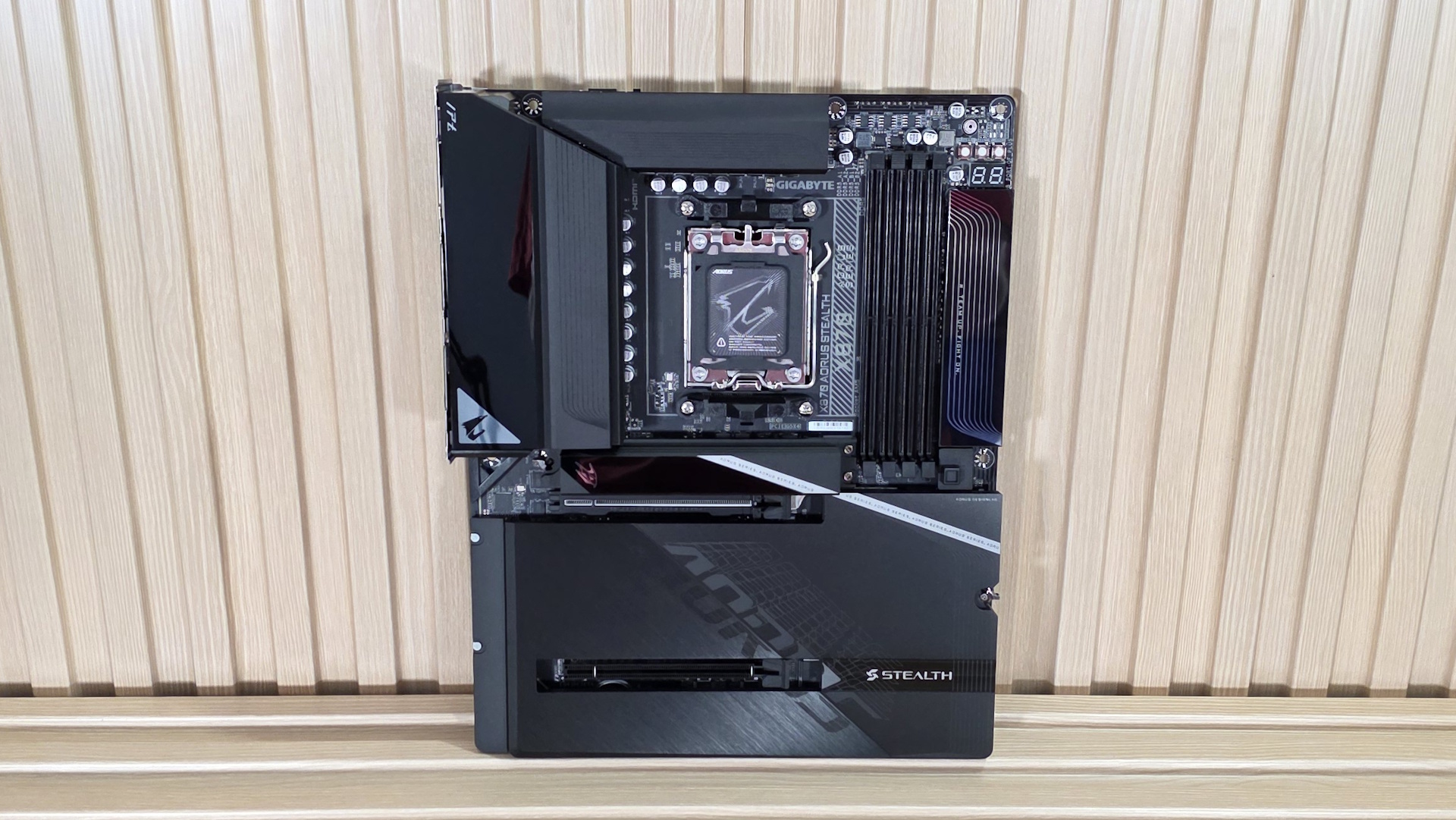

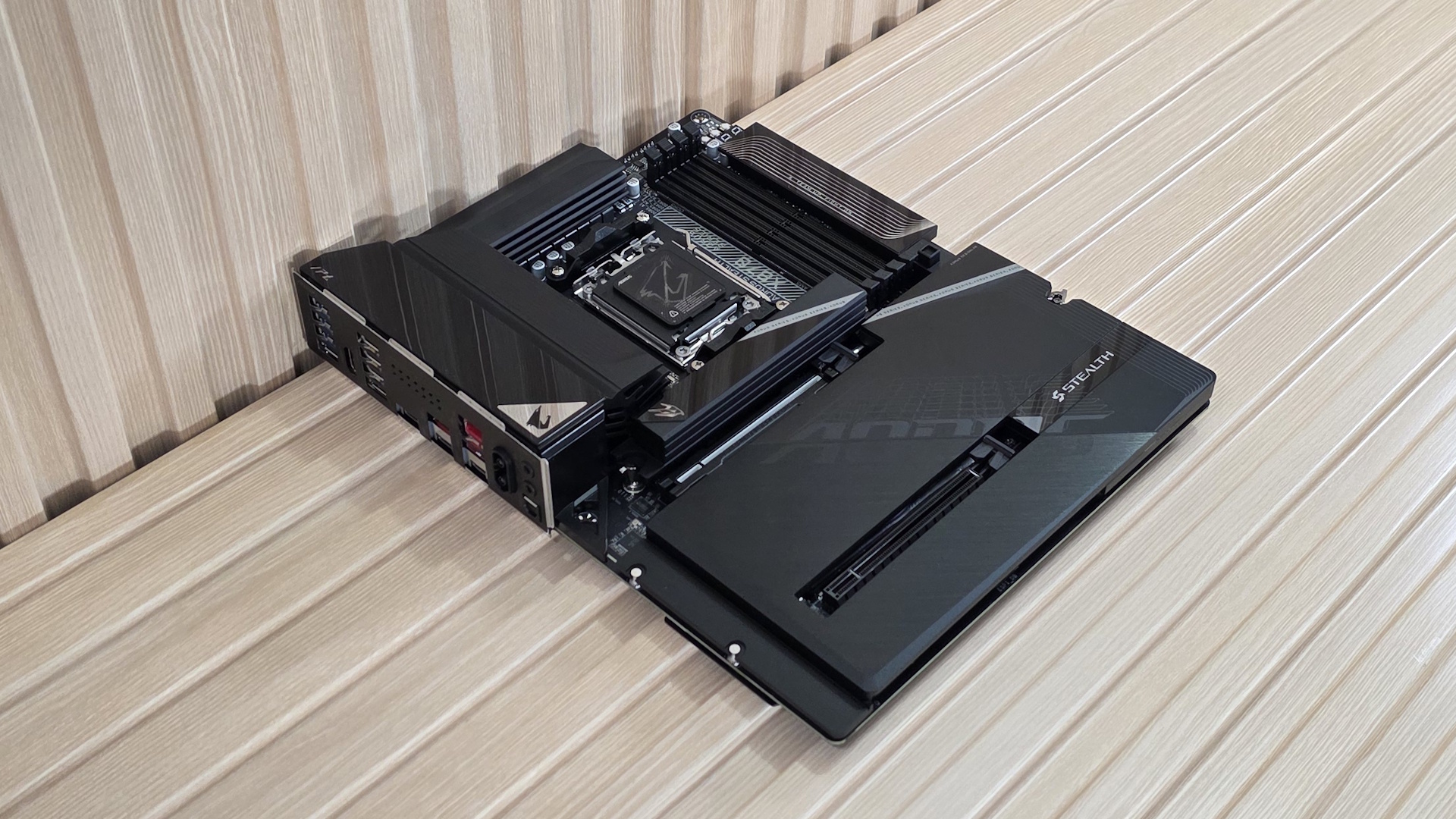

For an all-black board, the X870 Aorus Stealth looks good and blends into any black or dark-themed setup. You won’t find any RGBs onboard (contrary to their website that shows RGB next to the DRAM slot, it’s reflective and did not light up on our board), so any lighting has to come from the chassis or connect them using the motherboard headers (controlled via RGB Fusion software). The large VRM heatsinks are connected through a heatpipe to share the thermal load. On top is a gloss-black design element, with the Aorus Falcon flexing proudly towards the bottom. The first M.2 socket has its own individual heatsink, while the bottom three use a large plate-style heatsink, both using the M.2 EZ-Click and EZ-Latch features to make installation and removal easier. The plate heatsink’s design is split diagonally, with Aorus branding in the middle, flanked by a brushed aluminum finish on the left, and a matte finish on the rest.
In all, I do like the appearance and wire-free aesthetic these rear-connect motherboards provide, as they really clean up the case’s interior.
Image 1 of 2

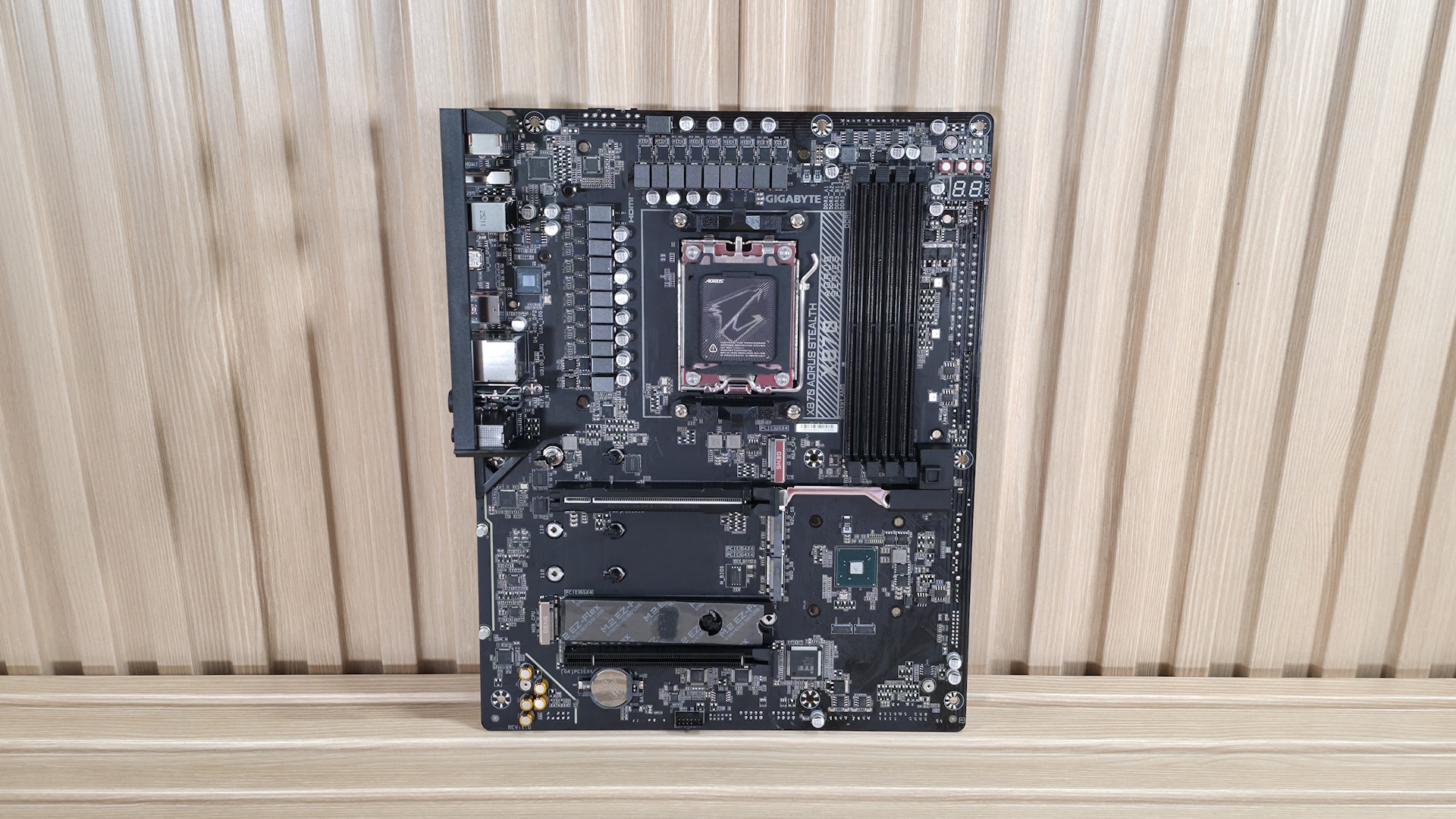

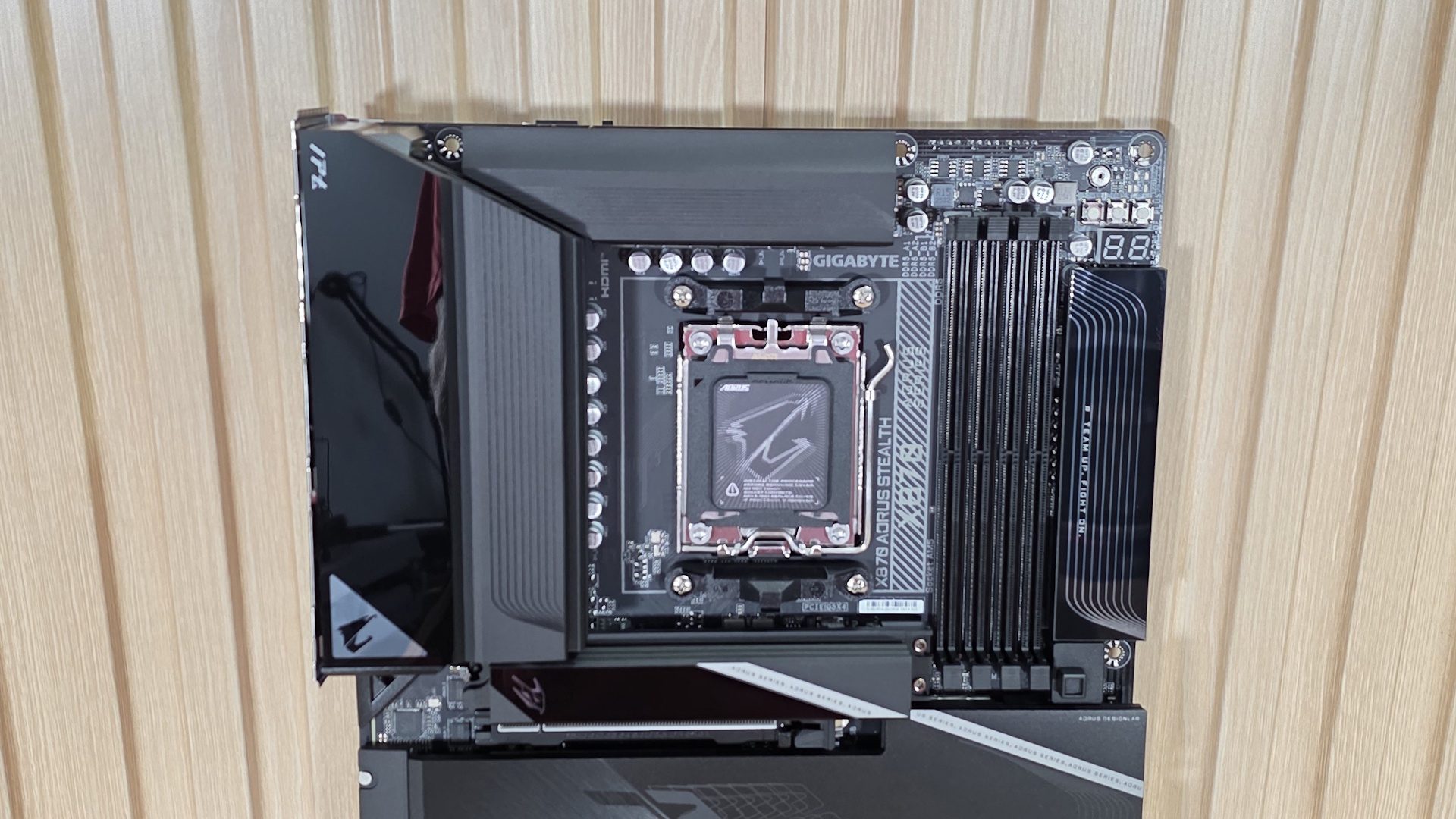

Zooming in on the front, we get a better look at the connector-free front side and how clean it looks. We won’t talk much about the VRM heatsinks (covered above), but we will move right to the DRAM slots. Each slot uses locking mechanisms on both sides to secure the RAM. Gigabyte lists support of up to 256GB and speeds to DDR5-8200, which is plenty fast for the platform. The board ran our DDR5-6000 and DDR5-7200 kits using the 9900X without issue, as also ran DDR5-8000 on the APU.
In the right corner are the four debug LEDs (CPU, DRAM, VGA, Boot) to help with POST issues. If there’s a problem booting your PC, the LED indicating the issue remains lit, giving users a general idea of where the problem is. The 2-character debug LED gives more detailed information, but this is fine for basic troubleshooting.
Just below that, in the EZ-Debug zone, are three simple buttons: Power, Reset, and QF Plus. The first two are self-explanatory. The QF_Plus button enables Q-Flash functionality, which allows you to update the BIOS when your system is off (S5 shutdown state). Simply plug the USB thumb drive into the dedicated port, then start the flash process by pressing the Q-Flash Plus button.

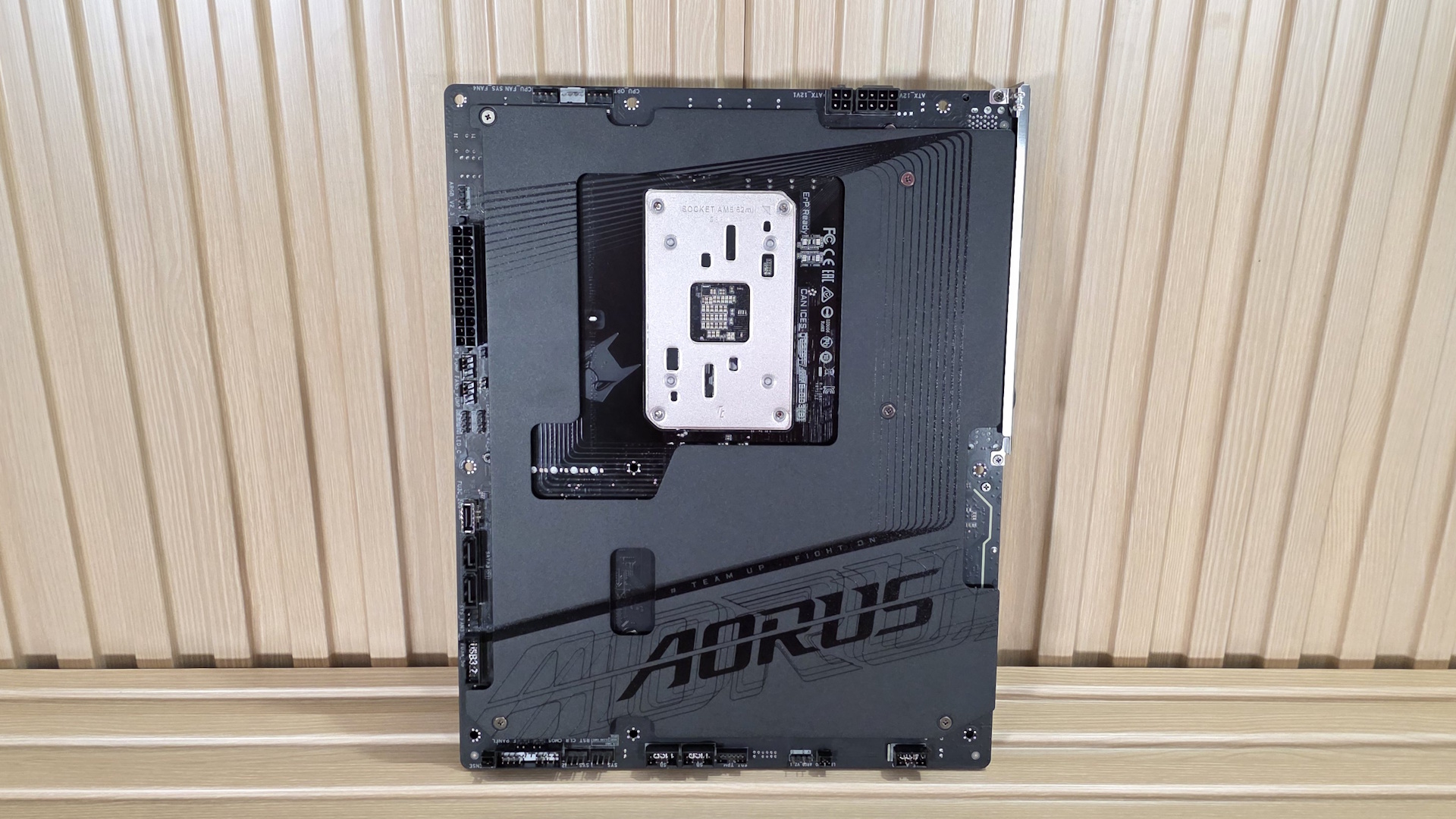

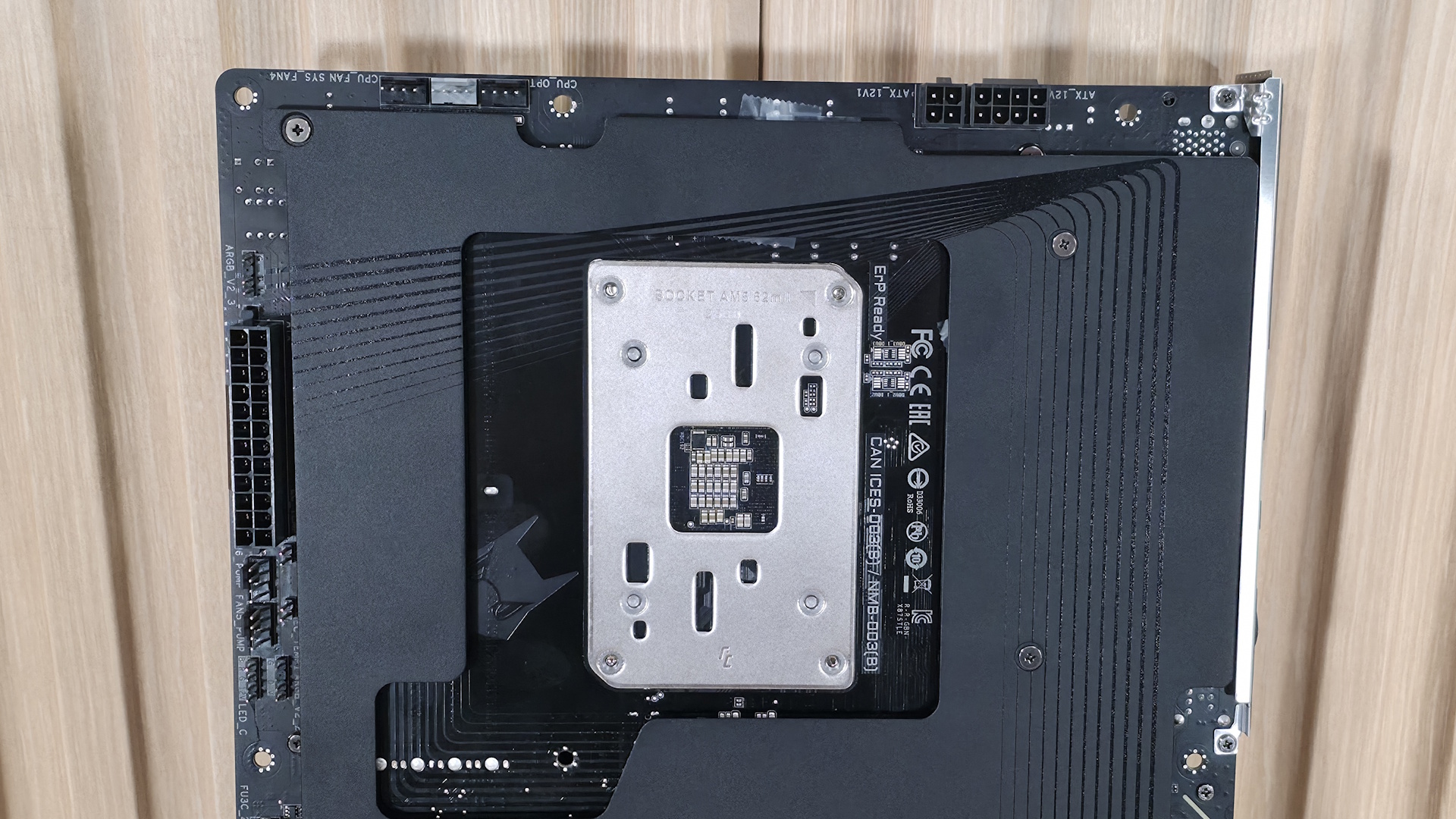

Flipping the board around to the rear, where all the connections are, we spy the two EPS connectors on the ‘right’ (8-pin and 4-pin; 8-pin required). Moving left in the image, we run across the first three (of eight) 4-pin fan headers. Each header supports both PWM- and DC-controlled devices, as usual. All headers output 2A/24W, which is plenty for a slew of fans or a pump for custom watercooling. Control over the fans is handled through the BIOS and Smart Fan 6, or the Gigabyte Control Center.
Working our way down the edge, we see the first 3-pin ARGB header, the 24-pin ATX power connector, and two more 4-pin fan headers. The two 2-pin headers are for temperature probes (not included, oddly), while below them are two more RGB headers (a 4-pin RGB and a 3-pin ARGB).

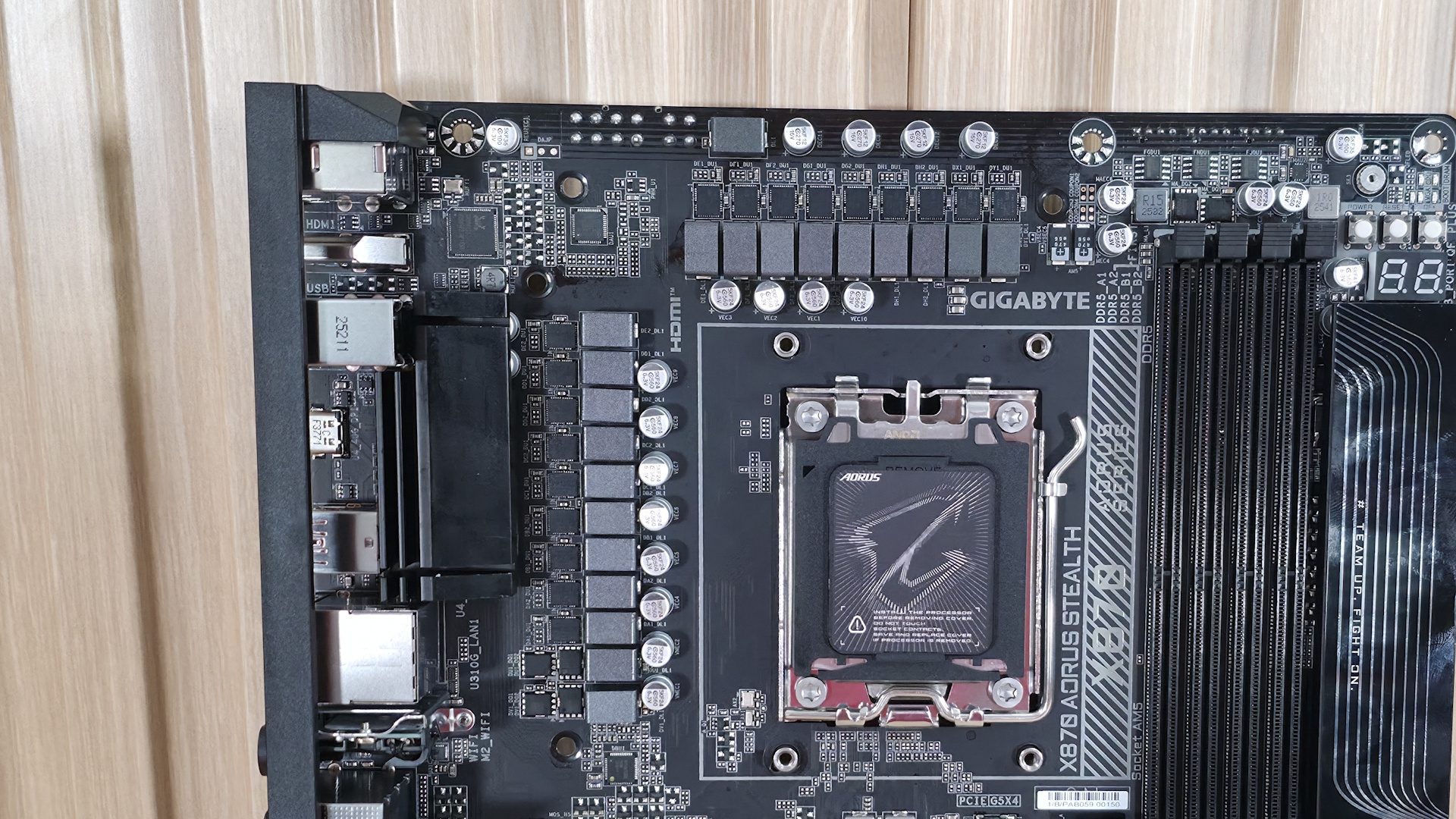

Power delivery on the X870 Aorus Stealth consists of 20 total phases, with 16 dedicated to Vcore. Power heads from the 8-pin EPS connector(s) in the top-left corner, then to an Infineon XDPE192C3D 12-channel controller. From there, it moves to the 16 Infineon PMC41410 80A SPS MOSFETs. It’s a capable solution that will handle anything you throw at it, including the Ryzen 9 9950X, the recently released Ryzen 7 9850X3D (fastest gaming processor around), or the purported Ryzen 9 9950X3D2.
Image 1 of 2

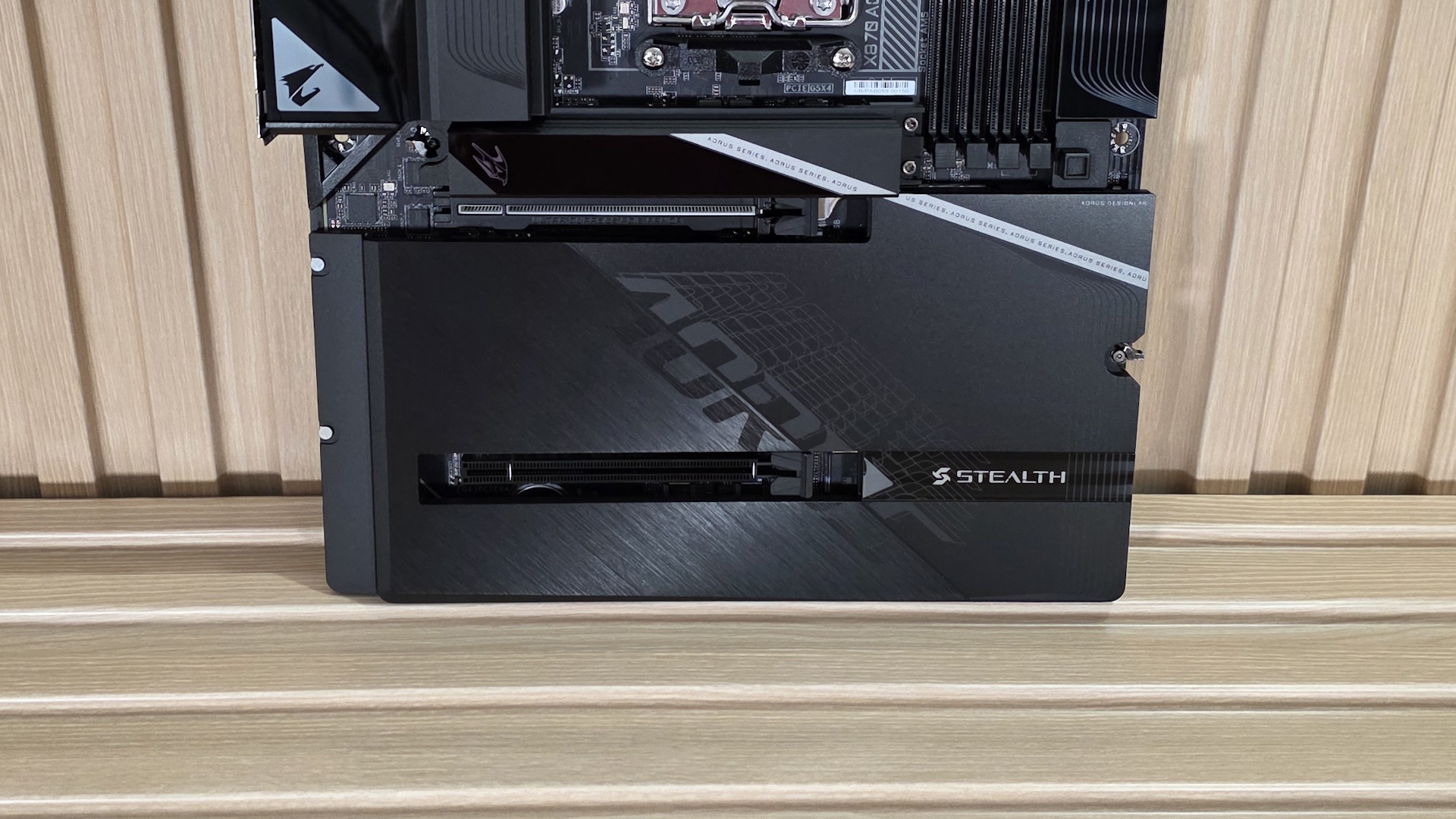

On the bottom half of the board, starting on the front-left side and under the plate heatsink, is the audio section. Gigabyte equips the Stealth with a last-gen solution: the flagship Realtek ALC1220 codec. We’d like to see the latest generation on the newest boards, but this solution is perfectly acceptable for an overwhelming majority of buyers.
In the middle of the board, under the heatsinks, are the four M.2 sockets. The top socket (M2A_CPU), with its own larger heatsink, supports up to 110mm devices and runs at PCIe 5.0 x4 (128 Gbps). Under the plate heatsink are three other sockets, each supporting up to 110mm modules. The top-most, M2B_CPU, is the other PCIe 5.0-capable socket, while the other two, M2C_XB and M2D_ASB, run up to PCIe 4.0 x4 (64 Gbps) and connect through the chipset.
Visible around the plate heatsink are two full-length PCIe slots. The top, reinforced slot, connects to the CPU and is your PCIe 5.0 x16 slot for your video card. It also uses the PCIe EZ-Latch Plus to secure your expensive graphics card in the slot. Simply install the card, and it locks, then press the button to remove. Easy breezy.
Moving right, past the chipset, and flipping the board over to see the connections, the first item we run into is the front-panel USB 3.2 Gen 2×2 (20 Gbps) connector. Next are two SATA ports, another system fan header, and last, a 19-pin USB 3.2 Gen 1 (5 Gbps) header.

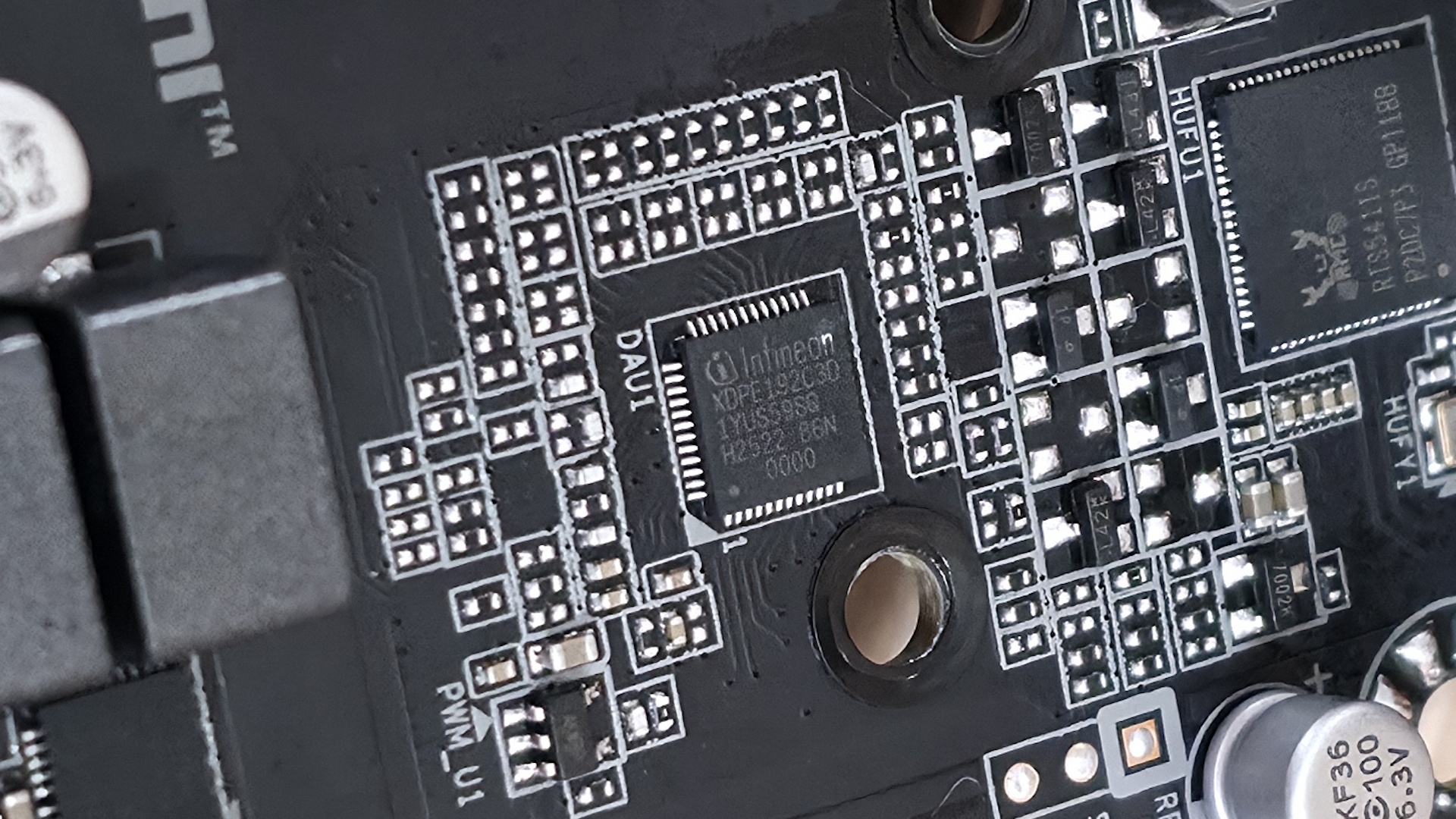

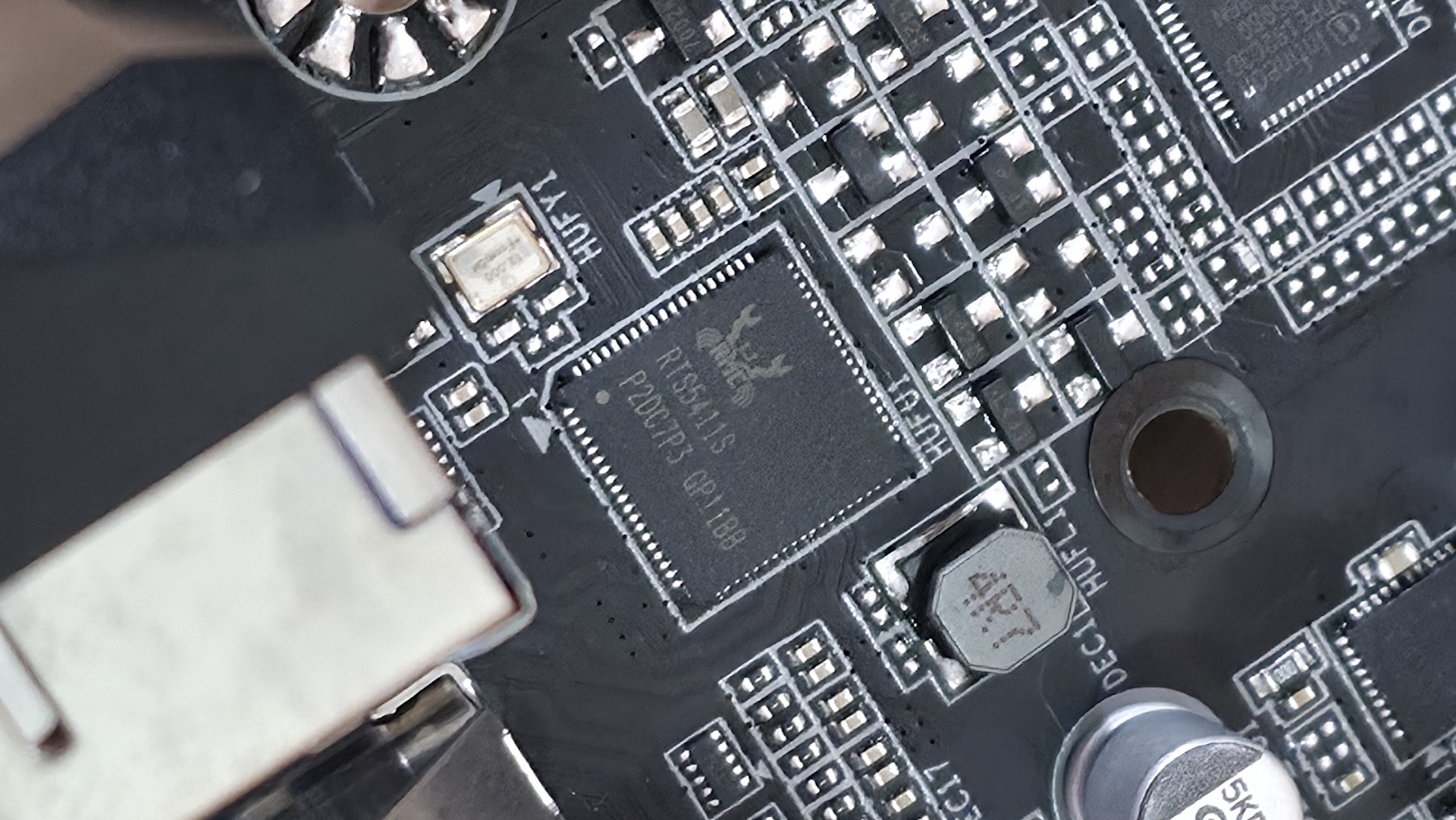

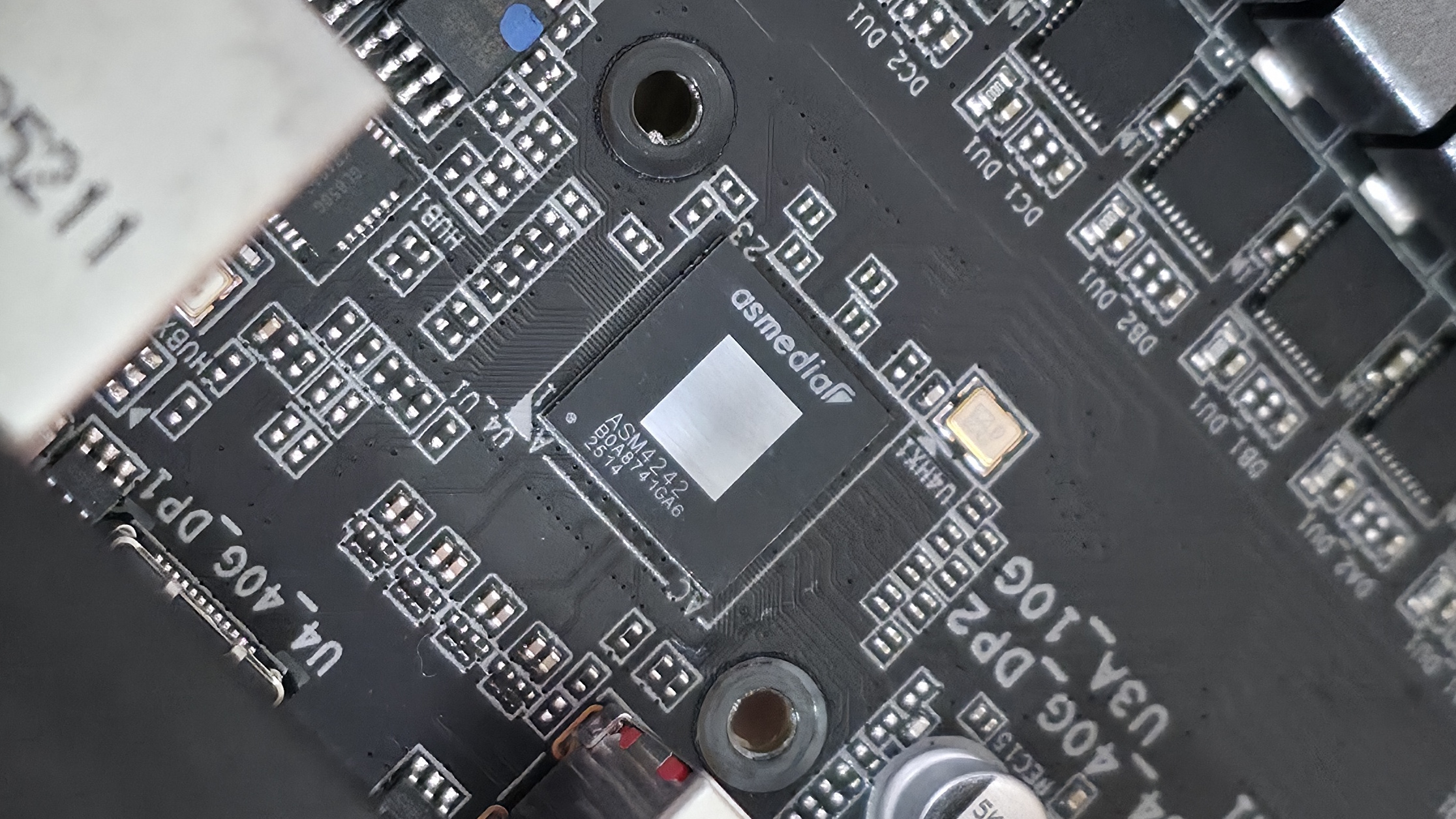

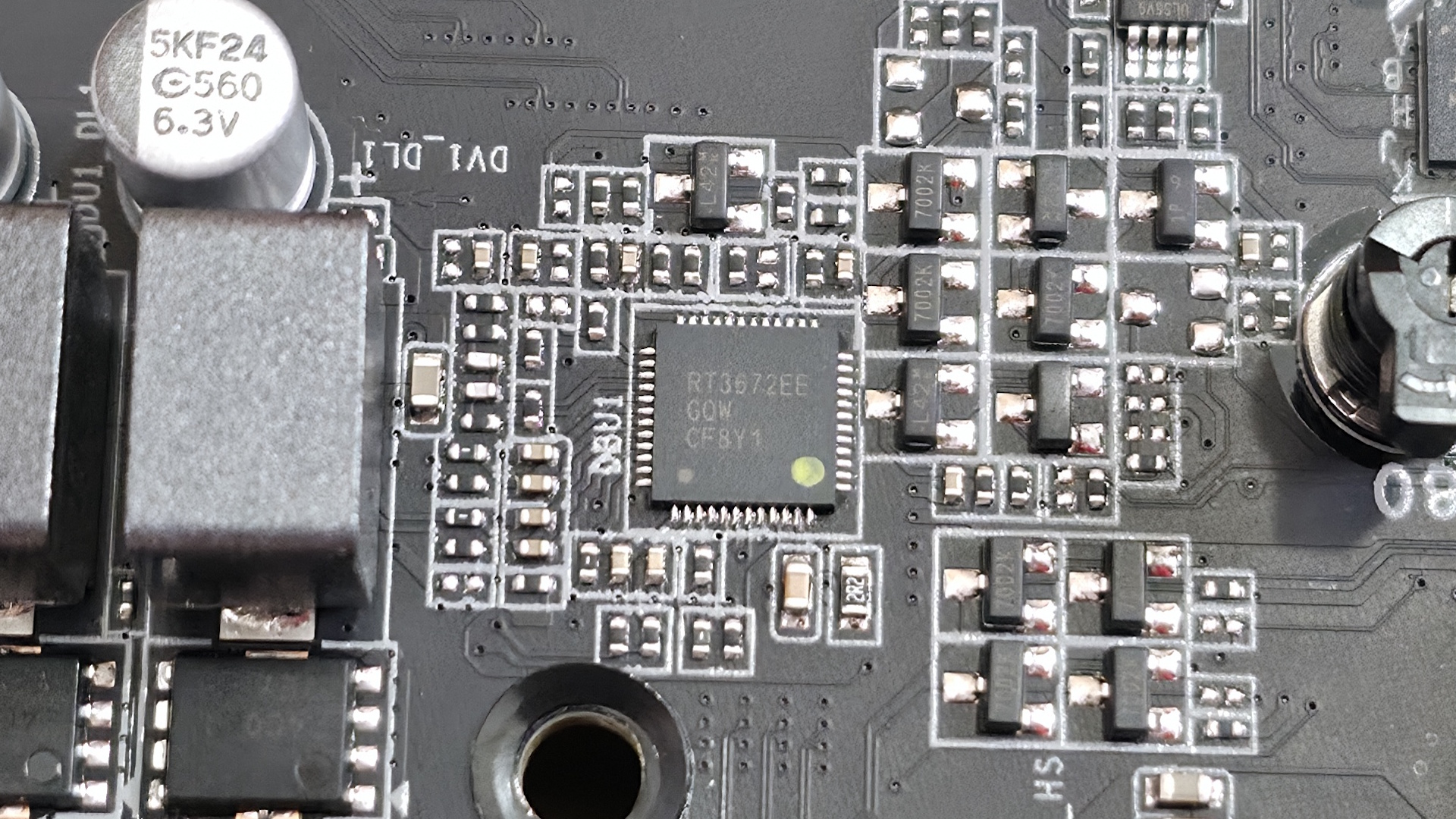

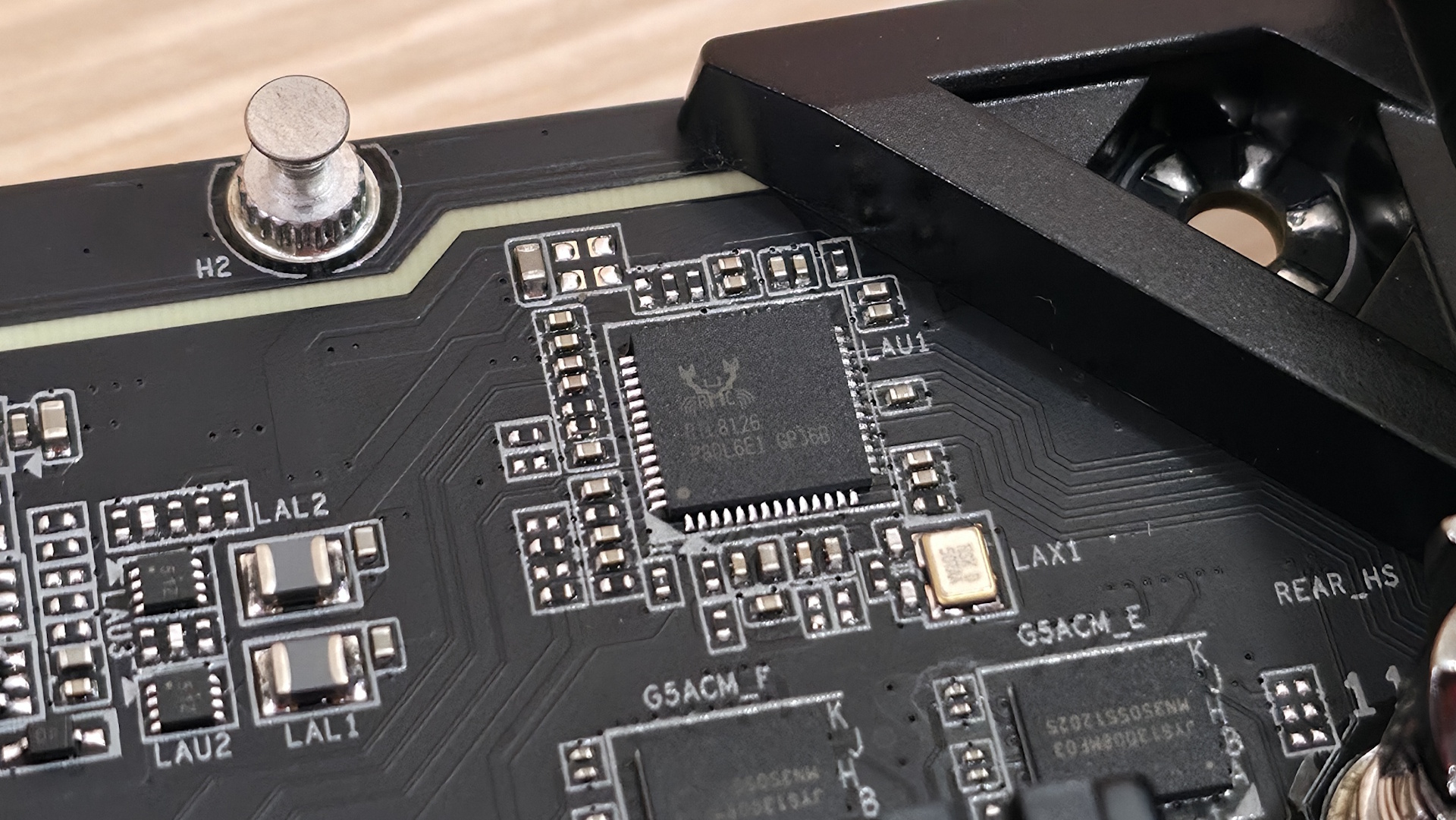

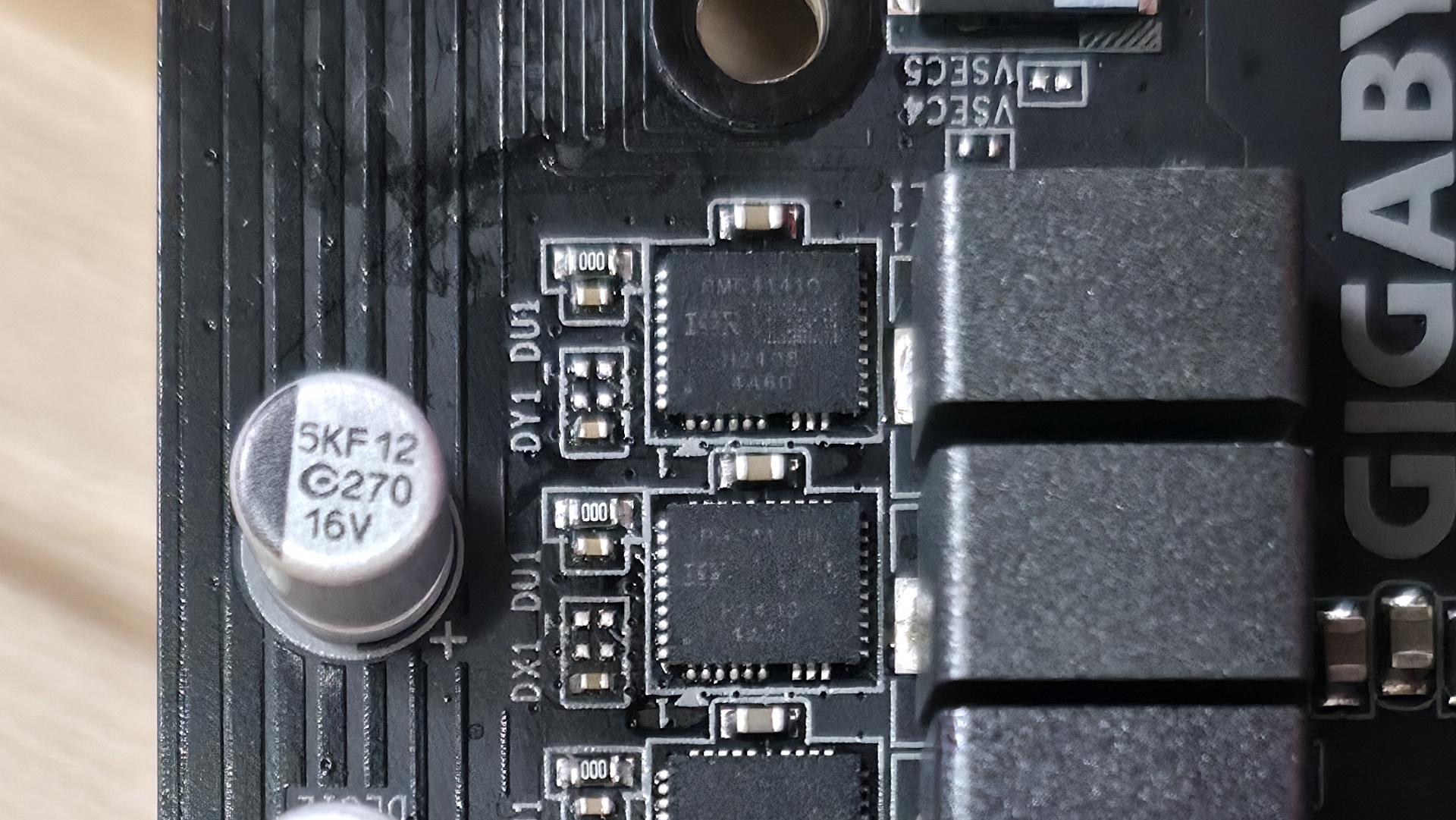

We also captured some pictures of the chips Gigabyte uses on this board. We see ASMedia for USB, Infineon for PWM controller and MOSFETs, along with Realtek covering audio, PWM control, USB, and networking duties.
Image 1 of 7

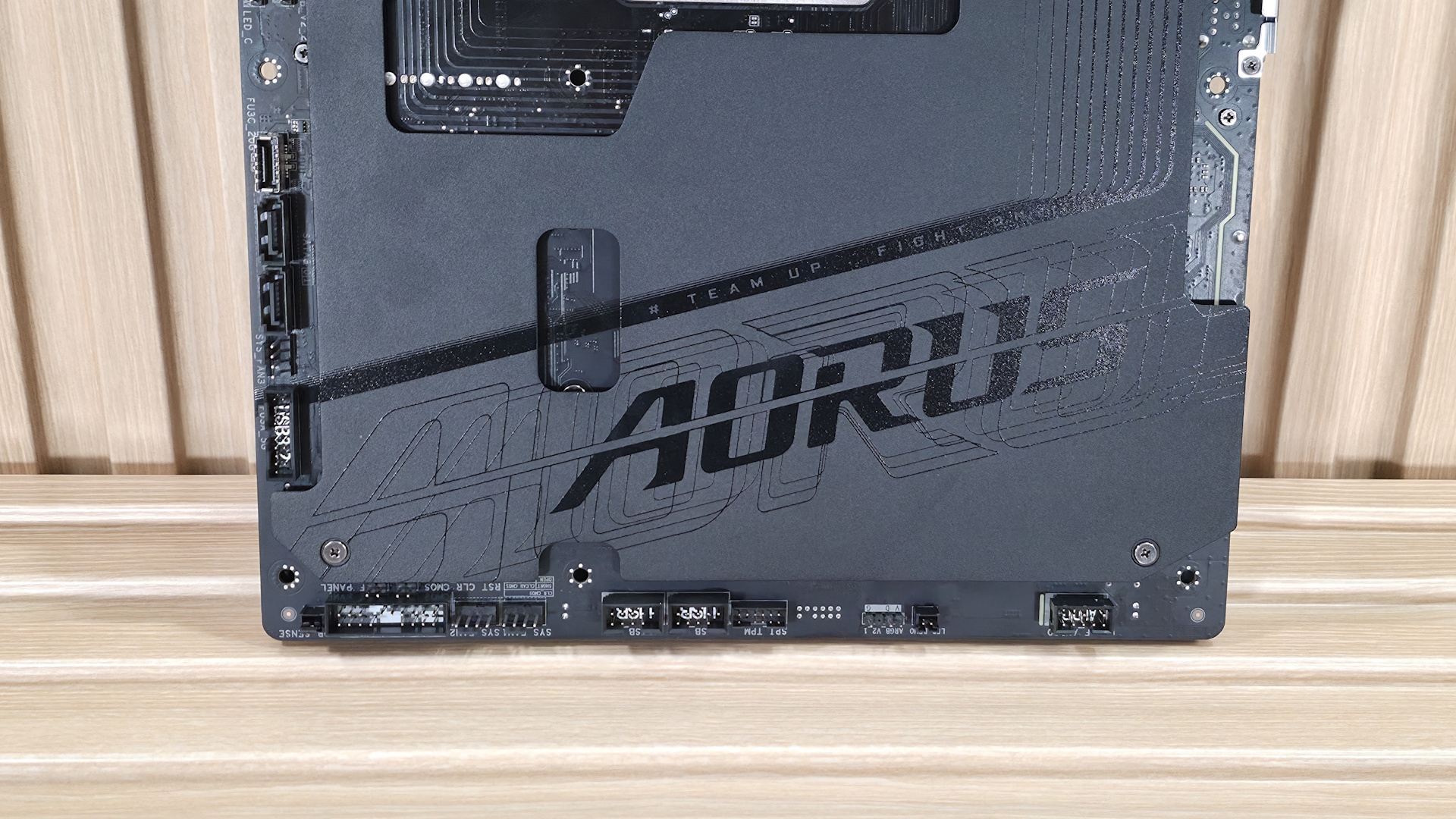

On the bottom of the board, again on the backside, are a slew of headers you’d normally see on the front. It offers your typical connectivity, with nothing missing or anything worth a specific mention. Below we’ve listed all the connections across the bottom (rear) of the board.
- Front panel audio
- 3-pin ARGB
- SPI TPM header
- (2) USB 2.0 headers
- (2) 4-pin system fan headers
- Front panel
- 2-pin Clear CMOS
- 2-pin Reset
- 2-pin DB sense

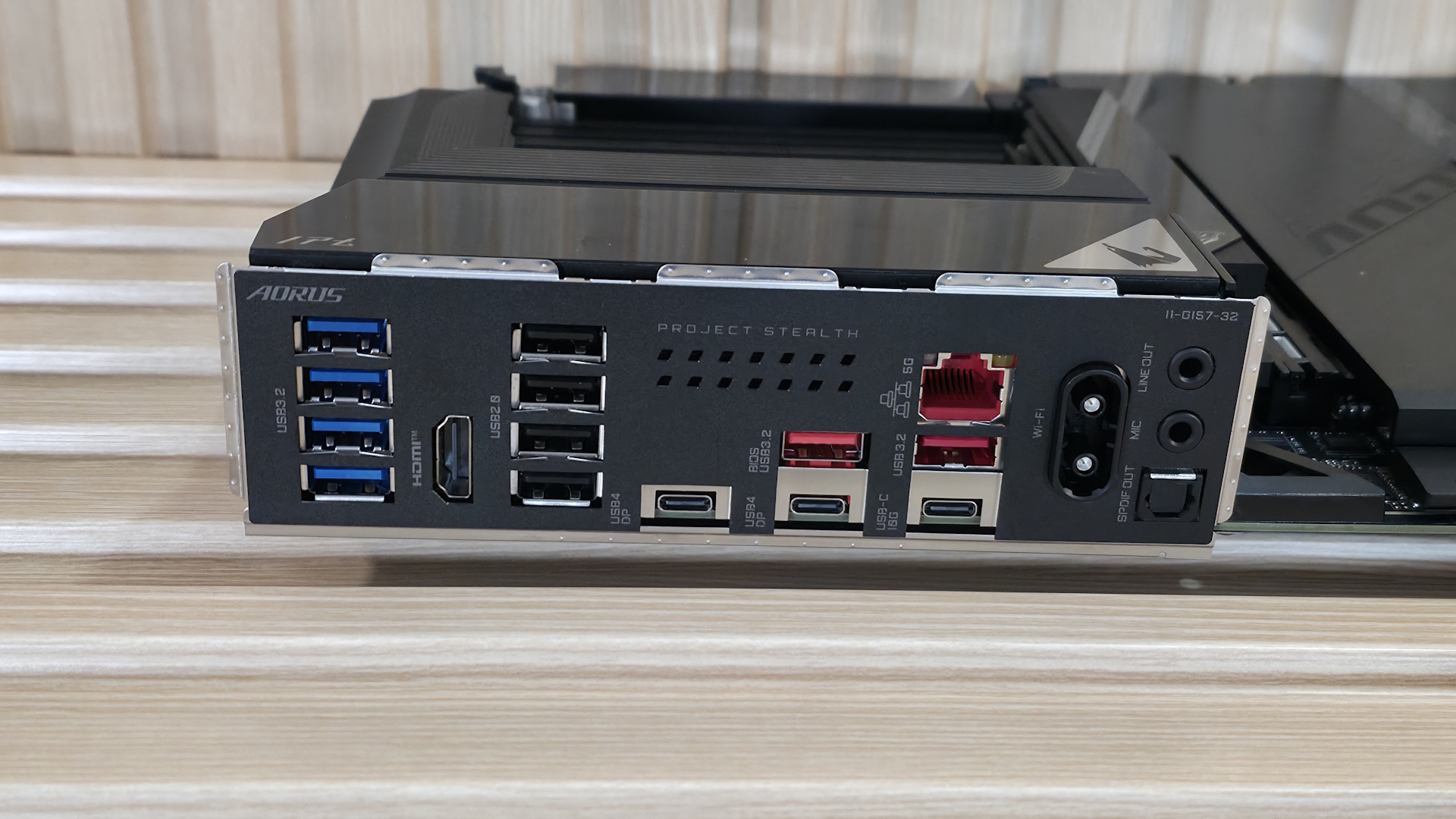

The rear IO on the Aorus Stealth offers plenty of connectivity, including 13 USB ports. Starting on the left, we see four USB 3.2 Gen 1 (5 Gbps) ports (blue), the HDMI output (for iGPU use), four USB 2.0 (480 Mbps) ports (black), and along the bottom three Type-C ports (2x USB4/40 Gbps, 1x USB 3.2/10 Gbps). Just above the three Type-C ports are two USB 3.2 Gen 2 (10 Gbps) ports (red). Above that is the Realtek RTL8126 5 GbE, while to the right is the quick connect for fast Qualcomm-based Wi-Fi 7. Finally, on the far right is the audio stack with two 3.5mm (mic and line out) and SPDIF out.
